What is a Squonk Mod? The Ultimate Guide to Squonking
30th Mar 2026
If you have ever ventured into the enthusiast side of the vaping community, you have probably heard the rather funny-sounding term "squonking." For many vapers, chasing the absolute purest flavor means using an RDA (Rebuildable Dripping Atomizer). However, the major pain point of an RDA is that you have to carry a bottle of e-liquid everywhere, constantly dripping juice onto your coils every few puffs to avoid a harsh dry hit.
What if you could get the world-class flavor of an RDA with the massive liquid capacity of a standard tank? That is exactly the problem squonking solves. Think of a squonk mod like a car with a massive, built-in reserve fuel tank and a manual fuel pump. Instead of stopping to refuel your coils from the top, you simply press a button (or squeeze a bottle) to push fuel up from the bottom. In this guide, we will explain exactly how squonk mods work and why they might be your next favorite piece of hardware.

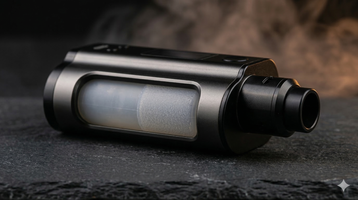

The Anatomy of a Squonk Mod
At first glance, a squonk mod looks very similar to a standard Box Battery Mod. However, there is one glaring difference: a squonk mod features a cutout on the side of the chassis that exposes a small, squeezable silicone or plastic bottle.
This internal bottle typically holds a massive 7ml to 10ml of e-liquid—far more than your average glass sub-ohm tank. A small tube connects this bottle directly to the device's 510 connection (the threaded area where you screw your tank on).
How Does Squonking Actually Work?
To squonk, you need two specific pieces of gear: a squonk-compatible mod and a bottom-feeding (BF) RDA. A BF RDA looks exactly like a normal dripping atomizer, but its 510 connection pin has a tiny hole drilled straight through the center.
When you give the silicone bottle on your mod a gentle squeeze, the pressure forces the e-liquid up the tube, through the hollow 510 pin, and directly into the juice well of your RDA. The liquid saturates your cotton from the bottom up. When you release the bottle, it creates a vacuum that sucks any excess juice back down into the bottle, completely eliminating the risk of flooding your deck or causing a leaky mess. It brings the convenience of Sub-Ohm Tanks to the raw performance of rebuildables.
Squonking vs. Traditional Dripping
Not sure if upgrading to a squonk setup is worth it? Here is a breakdown of how a bottom-feeding squonk rig compares to the old-school method of carrying a bottle and dripping manually:
|
Feature |
Traditional Dripping (Standard RDA) |
Squonking (BF RDA + Squonk Mod) |
|
Juice Capacity |
Very Low (Holds ~1ml in the well) |
Massive (7ml to 10ml in the bottle) |
|
Convenience |
Low (Requires removing cap to drip) |
High (Just squeeze the bottle) |
|
Flavor Quality |
Exceptional |
Exceptional |
|
Portability |
Requires carrying a separate juice bottle |
All-in-one system |
|
Spill Risk |
High (Easy to over-drip and leak) |
Low (Vacuum pulls excess juice back) |
Mechanics and capacity averages supported by [External Link: Vaping Hardware Device Mechanics].
Frequently Asked Questions
Can I use any RDA on a squonk mod?
No, you must use an RDA that includes a "squonk pin" or "BF pin" (Bottom-Feeding pin). If you use a standard, solid 510 pin, the juice will have nowhere to go when you squeeze the bottle, and the pressure could rupture the internal tubing of your mod. Fortunately, almost all modern RDAs come with an interchangeable squonk pin in the box.
Will a squonk mod leak in my pocket?
If built and used correctly, squonk mods are remarkably leak-resistant. Because the vacuum action pulls un-vaporized e-liquid back down into the bottle, the juice well of your RDA stays relatively dry when not in use. Just ensure your silicone bottle is securely attached to the internal feed tube.
Is squonking good for beginners?
Squonking does require a baseline knowledge of Vape Coil Building. Because you still have to build your own coils, install them, and wick the cotton yourself, it is generally recommended for intermediate to advanced vapers who are already comfortable with rebuildable atomizers and battery safety.
Elevate Your Flavor Game
If you are tired of carrying sticky bottles of juice in your pockets but refuse to compromise on the dense, warm flavor that only an RDA can provide, it is time to join the squonk revolution. A bottom-feeding setup truly offers the best of both worlds. Ready to build your dream rig? Explore our premium selection of advanced hardware and Vape Accessories at Inline Vape and never drip manually again.
