What is Bypass Mode on a Vape Mod? A Complete Guide
30th Mar 2026
If you have ever purchased a modern, feature-rich box mod and scrolled through the settings menu, you have likely stumbled across a mysterious option labeled "Bypass." For many vapers, it sits untouched, overshadowed by standard Variable Wattage or Temperature Control modes. But what exactly does it do?
Think of using your vape mod in its standard setting like driving an automatic car: the computer does all the shifting and regulates the power for a smooth, consistent ride. Switching to Bypass Mode is like throwing that car into manual. You are stripping away the computer's regulations to feel the raw, unfiltered power of the engine. In this guide, we are going to break down exactly how Bypass Mode works, why advanced vapers love it, and the crucial safety tips you need to know before turning it on.

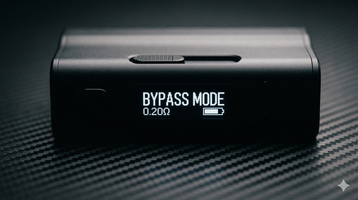

How Bypass Mode Actually Works
To understand Bypass Mode, you first need to understand what your mod's internal chip normally does. When you set your device to 60W, the internal circuitry regulates the power coming from your 18650 or 21700 battery to ensure you get exactly 60 watts on every single puff, regardless of whether your battery is fully charged or almost dead.
When you switch to Bypass Mode, you are telling the computer chip to stop regulating the power. Instead, the device pulls raw voltage directly from the battery and sends it straight to your coil. The wattage you experience is now determined entirely by two things: the current charge level of your battery and the resistance (ohms) of your coil, following the rules of Ohm's Law.
If you have a fully charged battery (typically outputting 4.2V), your first few puffs will hit incredibly hard. As the battery drains over the day (dropping to 3.7V or lower), the power output will naturally decrease, and your vapor will become cooler.
Bypass Mode vs. Mechanical Mods
You might be thinking, "Isn't that exactly how a mechanical mod works?" You are exactly right. Bypass Mode was designed to safely mimic the raw, aggressive hit of an unregulated mechanical mod.
However, true mechanical mods have absolutely zero internal wiring or safety chips. If you build a coil incorrectly or put in a damaged battery, a mechanical mod will still fire, which can lead to catastrophic battery failure. Bypass mode gives you the mechanical experience while keeping the safety protections active.
|
Feature |
Variable Wattage Mode |
Bypass Mode |
True Mechanical Mod |
|
Power Output |
Consistent & Regulated |
Decreases as battery drains |
Decreases as battery drains |
|
User Control |
High (You set the wattage) |
Low (Dictated by coil & battery) |
Low (Dictated by coil & battery) |
|
Short Circuit Protection |
Yes |
Yes |
No |
|
Over-Discharge Protection |
Yes |
Yes |
No |
|
Ideal User |
All Vapers |
Advanced Vapers |
Expert Builders Only |
Safety parameters align with standards outlined by [External Link: Battery University & Vaping Safety Standards].
Who Should Use Bypass Mode?
Bypass Mode is not for everyone. If you are using standard Sub-Ohm Tank with pre-built mesh coils, you should generally stick to Variable Wattage. Pre-built coils have a strict recommended wattage range, and hitting them with the raw power of a fully charged battery in Bypass Mode can instantly scorch the cotton, ruining the coil.
This mode shines for vapers who build their own coils and RDAs (Rebuildable Dripping Atomizers). Cloud chasers love the immediate, aggressive ramp-up time that a fresh battery provides in Bypass Mode. It allows builders to craft specific sub-ohm resistance coils (like 0.15 ohms) to draw the exact maximum amperage they want from their batteries.
Frequently Asked Questions
Is Bypass Mode dangerous?
No, Bypass Mode on a regulated box mod is very safe. While it bypasses the wattage regulation, it does not bypass the safety features. Your mod's chip will still protect you against short circuits, overheating, and draining your battery below a safe voltage limit.
Why is my vape hitting weaker throughout the day in Bypass Mode?
This is the natural behavior of an unregulated power draw. When your battery is at 100%, it pushes maximum voltage to the coil. As the battery capacity depletes, the voltage drops, resulting in a cooler vape with less cloud production. To fix this, you simply need to recharge or swap your batteries.
Can I use Bypass Mode with a disposable or pod system?
No. Bypass Mode is exclusively found on advanced, chipset-driven box mods. Disposable Vapes and basic pod systems are internally regulated to provide a consistent, low-wattage output perfect for high-strength nicotine.
Unleash Your Device's Potential
Understanding the different modes on your device is the key to unlocking your perfect vaping experience. Whether you want the consistent reliability of Variable Wattage or the raw, mechanical feel of Bypass Mode, having the right hardware is essential. Explore our premium selection of advanced box mods, RDAs, and high-drain batteries at Inline Vape and take your setup to the next level.
